Is Sony in violation of the LGPL? - Part II

Hey,

I'm sure you've been waiting for updates that prove what we're talking about. Here it comes. I want to talk about the file ECDPlayerControl.ocx which the fanstastic muzzy found yesterday while I had nothing better to do than to listen to my pillow. It uses LAME code (and code from at least one other LGPL library).

At virtual offset 0x100607D0 you can find a function that's called GetVbrTag in the LAME source code (it can be found in the file VbrTag.c). Here's some code straight from the LAME source code (it's only the first part of the function, I don't want this post to get too long):

int GetVbrTag(VBRTAGDATA *pTagData,  unsigned char buf)
{
	int			i, head_flags;
	int			h_bitrate,h_id, h_mode, h_sr_index;
        int enc_delay,enc_padding;

	/ get Vbr header data /
	pTagData->flags = 0;

	/ get selected MPEG header data /
	h_id       = (buf[1] >> 3) & 1;
	h_sr_index = (buf[2] >> 2) & 3;
	h_mode     = (buf[3] >> 6) & 3;
        h_bitrate  = ((buf[2]>>4)&0xf);
	h_bitrate = bitrate_table[h_id][h_bitrate];

        / check for FFE syncword */
        if ((buf[1]>>4)==0xE)
            pTagData->samprate = samplerate_table[2][h_sr_index];
        else
            pTagData->samprate = samplerate_table[h_id][h_sr_index];
    ...

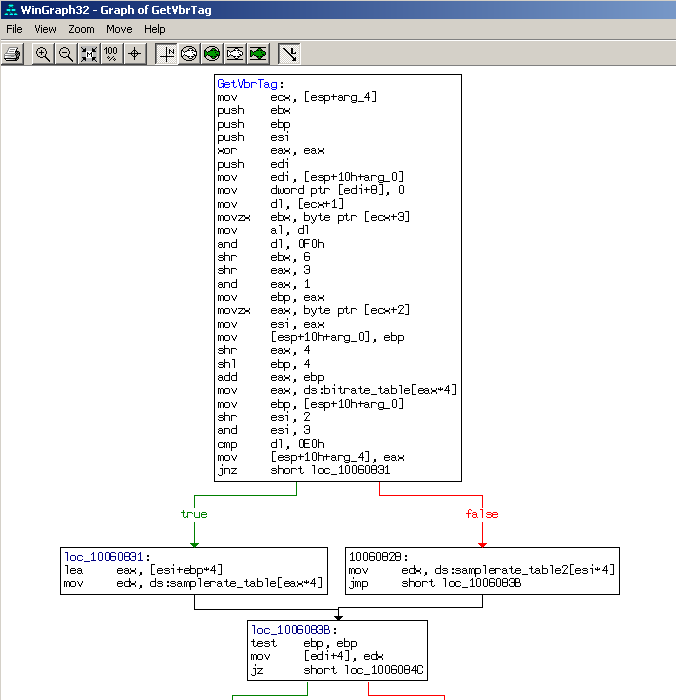

Now compare this to the disassembly. You can easily spot "pTagData->flags = 0", the three shifts, the array access and the if-comparison (although the code was a bit optimized by the compiler). To make it easier, here's the flow-chart diagram of the function too.
.text:100607D0 GetVbrTag       proc near               ; CODE XREF: sub_10059240+77p
.text:100607D0
.text:100607D0 arg_0           = dword ptr  4
.text:100607D0 arg_4           = dword ptr  8
.text:100607D0
.text:100607D0                 mov     ecx, [esp+arg_4]
.text:100607D4                 push    ebx
.text:100607D5                 push    ebp
.text:100607D6                 push    esi
.text:100607D7                 xor     eax, eax
.text:100607D9                 push    edi
.text:100607DA                 mov     edi, [esp+10h+arg_0]
.text:100607DE                 mov     dword ptr [edi+8], 0
.text:100607E5                 mov     dl, [ecx+1]
.text:100607E8                 movzx   ebx, byte ptr [ecx+3]
.text:100607EC                 mov     al, dl
.text:100607EE                 and     dl, 0F0h
.text:100607F1                 shr     ebx, 6
.text:100607F4                 shr     eax, 3
.text:100607F7                 and     eax, 1
.text:100607FA                 mov     ebp, eax
.text:100607FC                 movzx   eax, byte ptr [ecx+2]
.text:10060800                 mov     esi, eax
.text:10060802                 mov     [esp+10h+arg_0], ebp
.text:10060806                 shr     eax, 4
.text:10060809                 shl     ebp, 4
.text:1006080C                 add     eax, ebp
.text:1006080E                 mov     eax, ds:bitrate_table[eax*4]
.text:10060815                 mov     ebp, [esp+10h+arg_0]
.text:10060819                 shr     esi, 2
.text:1006081C                 and     esi, 3
.text:1006081F                 cmp     dl, 0E0h
.text:10060822                 mov     [esp+10h+arg_4], eax
.text:10060826                 jnz     short loc_10060831
.text:10060828                 mov     edx, ds:samplerate_table2[esi*4]
.text:1006082F                 jmp     short loc_1006083B
I think you agree with me that this is a clear case.

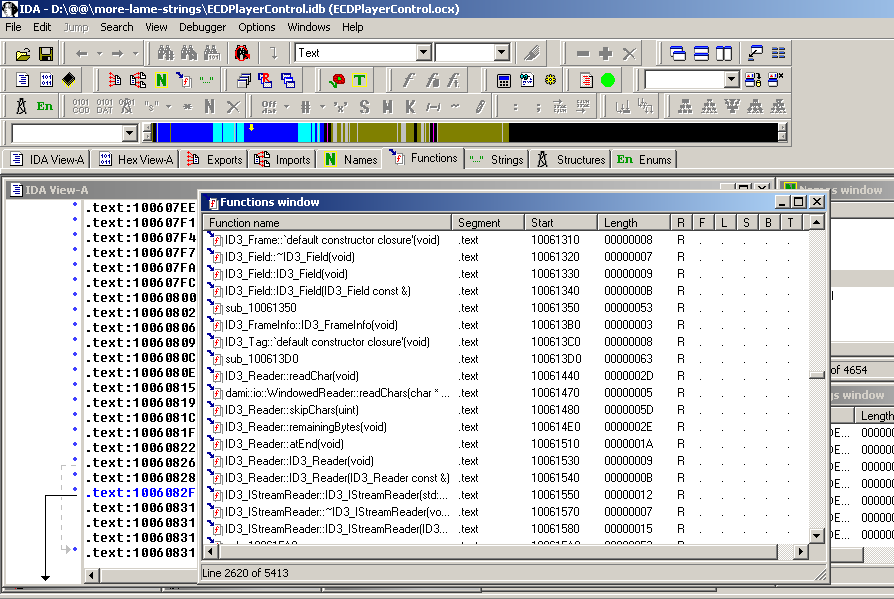

I also want to mention that the entire id3lib library (also LGPL software) is in the file too. Thankfully id3lib is written in C++ and not in C and therefore finding matches is significantly faster as the original function names are part of the binary files (thanks for the debug build too). Just click this link to see some of the id3lib functions in the file.

I want to summarize what we have and raise a few questions at this point:
- The LGPL is not mentioned on the CD.
- That means no copyright notice as the LGPL demands either.
- Does an OCX qualify as a linked library? Probably. But I am not able to re-create the OCX file because it contains at least two LGPL libraries and additional (probably proprietary) code. Is this necessary to be LGPL-compliant? (see the end of the article).
- Are the files part of this LGPL-licensed software by Sony? Does that have any effect on the legality of the OCX? The first two points would still stand.

All this legalese is killing me, I can only report on the code. I think we've reached a certain point where it's time to take a break. We've definitely found LGPL code in the software. Now it's time for the license gurus to find out if that constitutes a license violation. Until this is cleared up I think I'm going to do something else.

Edit: There are differences in opinion about what constitutes a LGPL infringement. Wikipedia says "Essentially, it must be possible for the software to be linked with a newer version of the LGPL-covered program. The most commonly used method for doing so is to use "a suitable shared library mechanism for linking". Alternatively, static linking is allowed if either source code or linkable object files are provided."

Does that mean everybody must be able to recreate the OCX file? Or what does that mean?
